Overview

ksTFL is a professional R package designed to fill a long-standing gap in the R ecosystem: the lack of a dedicated, end-to-end solution for producing well-formatted, regulatory-compliant clinical Tables, Figures, and Listings (TFLs). While R excels at statistical analysis, generating submission-quality DOCX outputs that meet pharmaceutical industry standards has traditionally required fragile workarounds or external tooling. ksTFL solves this by distilling the best ideas from existing reporting solutions into a simple, minimalistic, yet highly flexible declarative language — a compact set of composable functions whose combinations can produce virtually any clinical output format.

The core philosophy is data–presentation separation: input data stays clean and planar, free of reporting artefacts such as merged cells, indentation columns, or display-only rows. Formatting, pagination, grouping, and styling are declared independently and applied at render time. This keeps datasets maintainable, traceable, and validation-ready — exactly what regulated environments demand.

Under the hood, a built-in rendering engine with text shaping converts declarative specs into styled DOCX documents with deterministic, pixel-perfect pagination. Rendering is extremely fast even on large datasets, making ksTFL practical for batch production of hundreds of outputs in a single pipeline run.

Key Design Principles

Separation of Concerns: Metadata generation (R) is decoupled from document rendering; input data remain clean and analysis-ready
Declarative Syntax: Users describe what to render, not how to render it — a small function vocabulary covers the full range of clinical outputs
Deterministic Pagination: font shaping guarantees pixel-perfect, reproducible layouts and pagination
High Performance: C++ engine renders large multi-spec reports in seconds
Type Safety: Comprehensive input validation with informative error messages
Reproducibility: Specifications are serializable. This allows storing metadata for replay without re-running the full pipeline

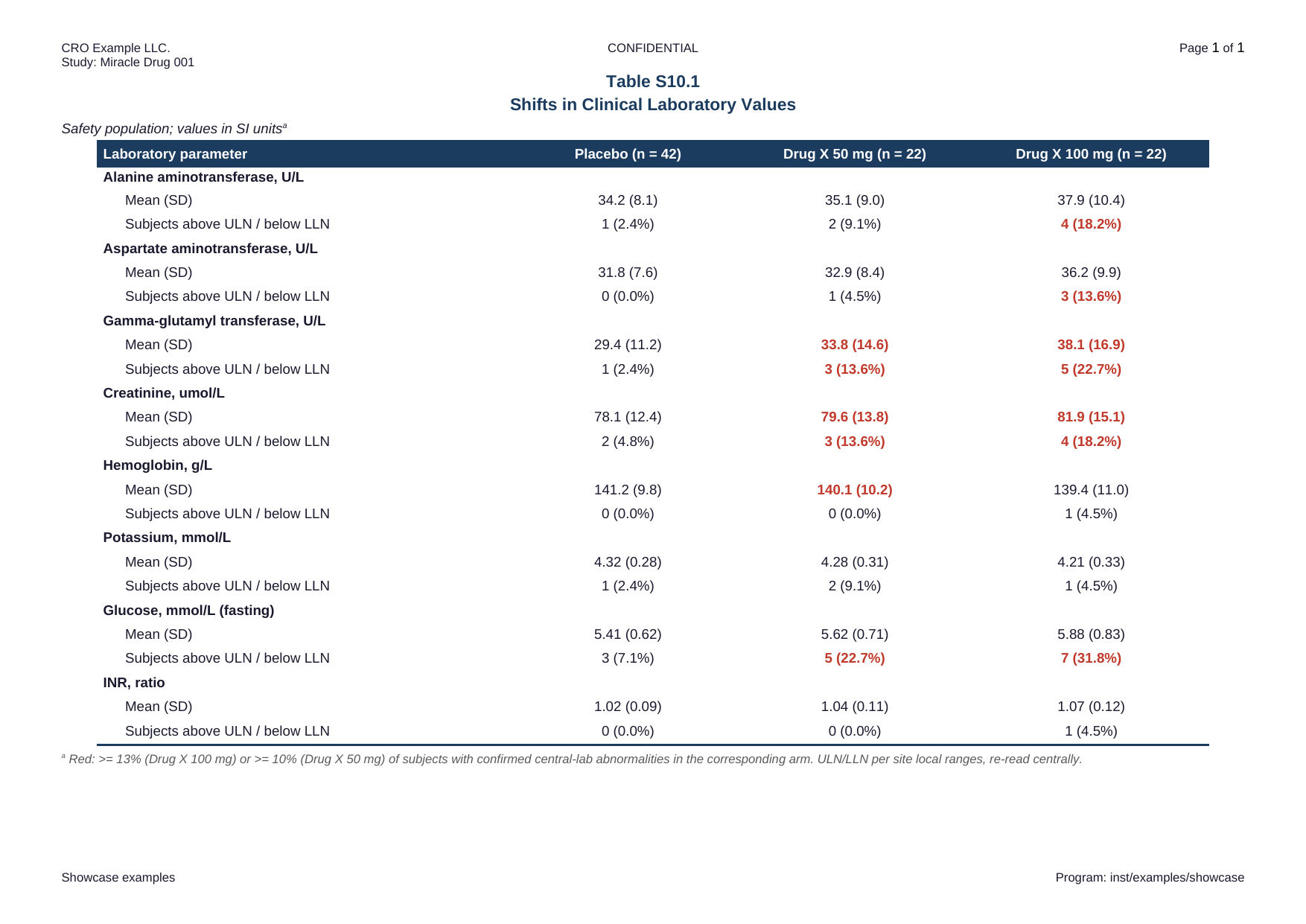

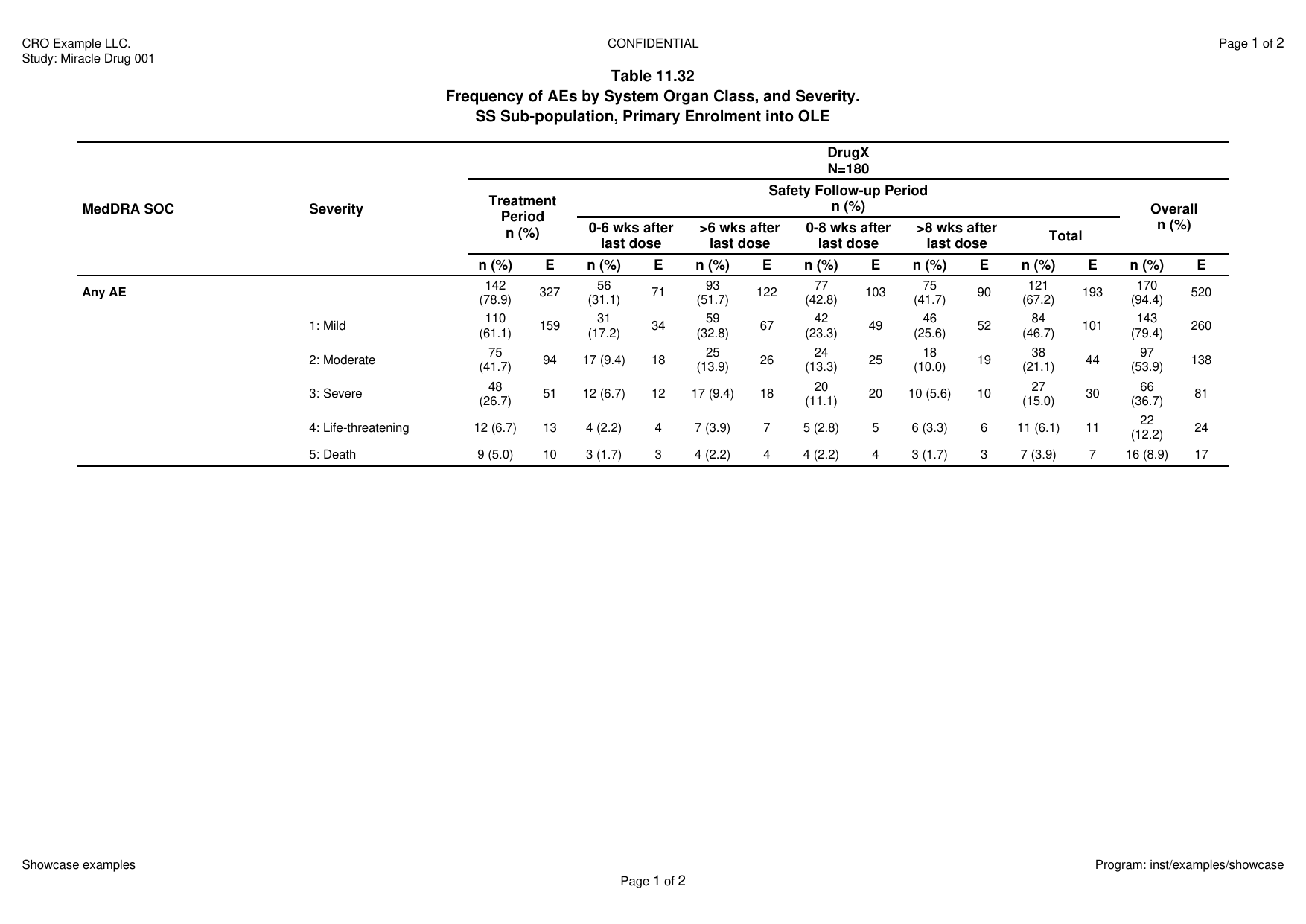

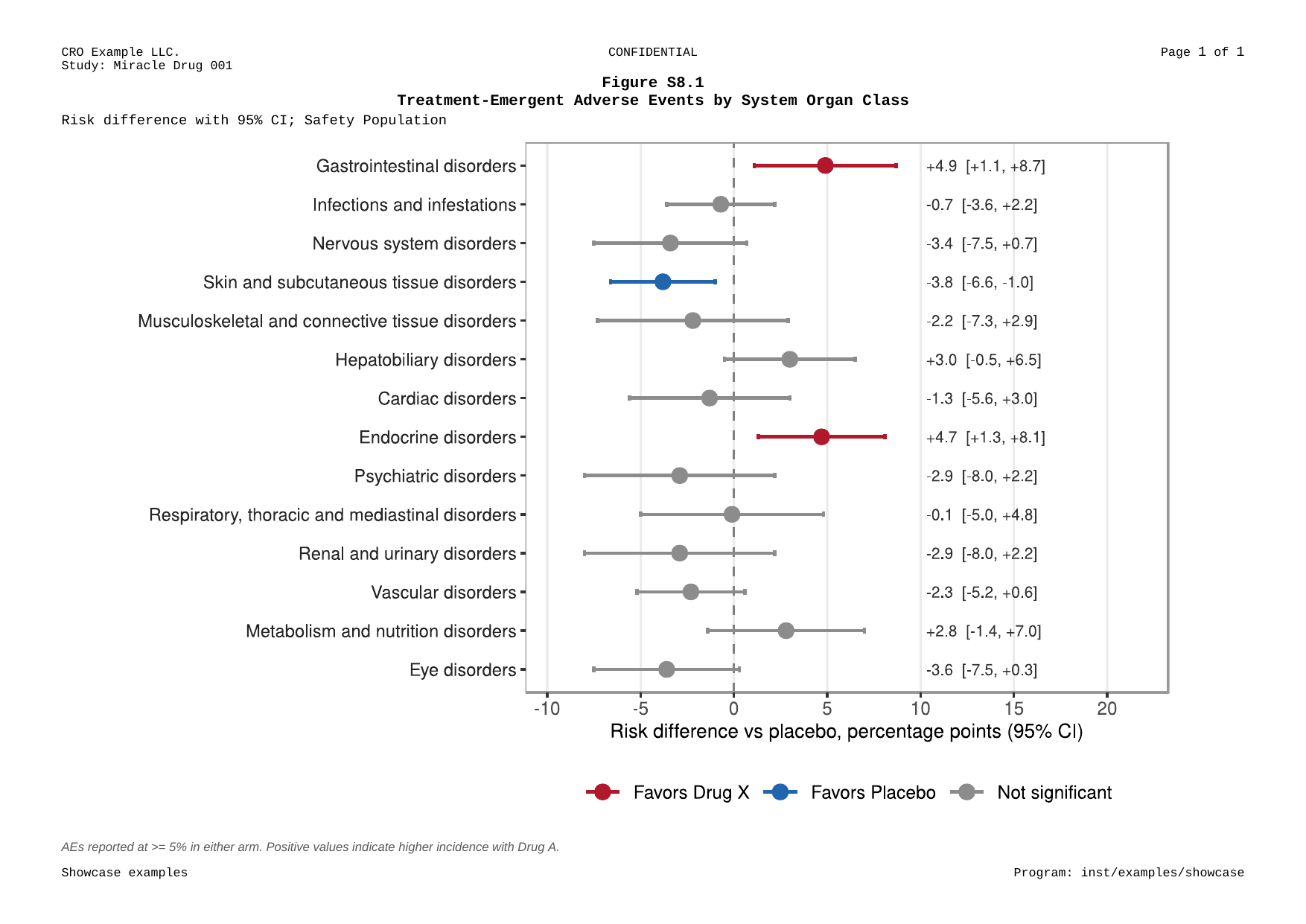

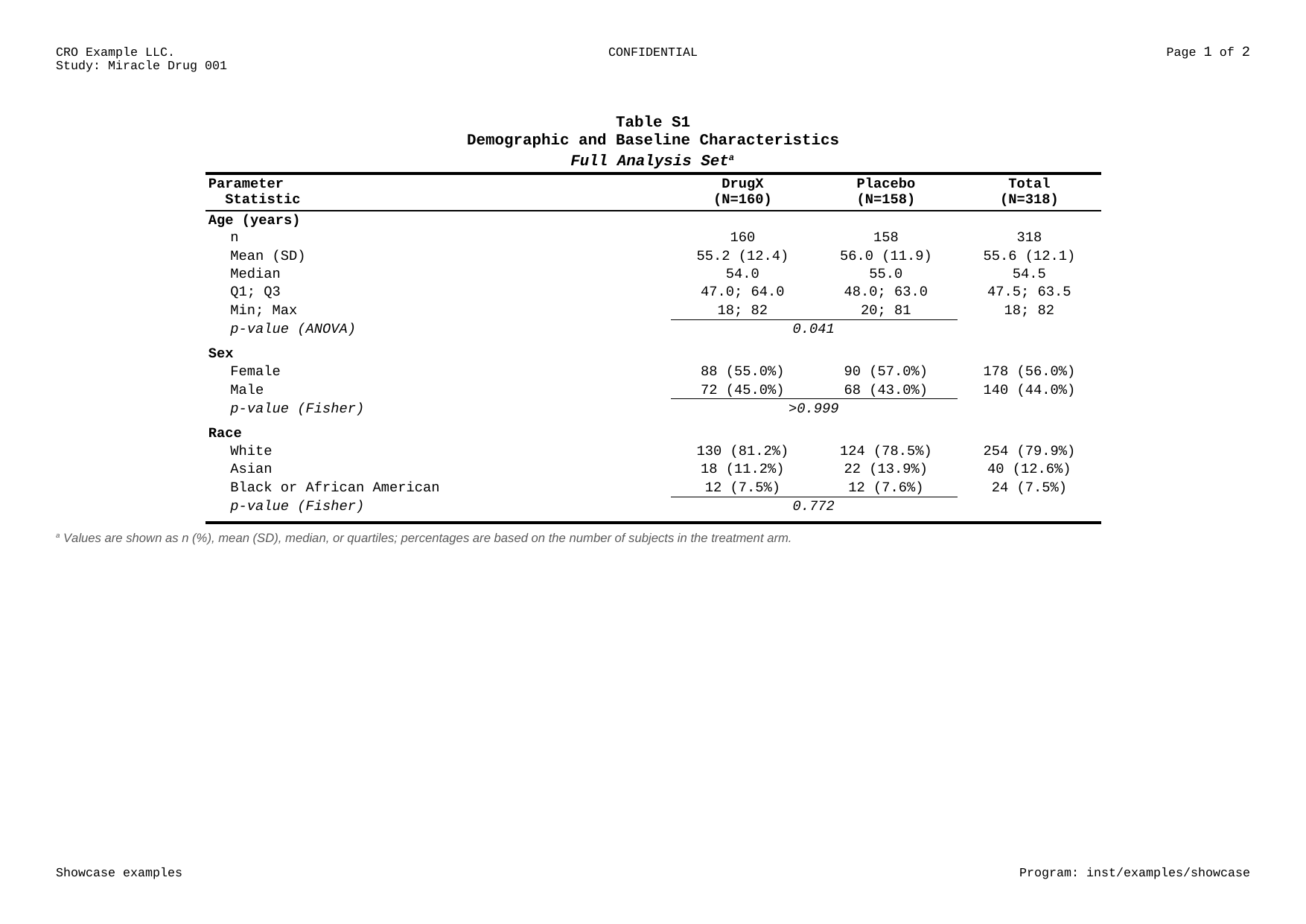

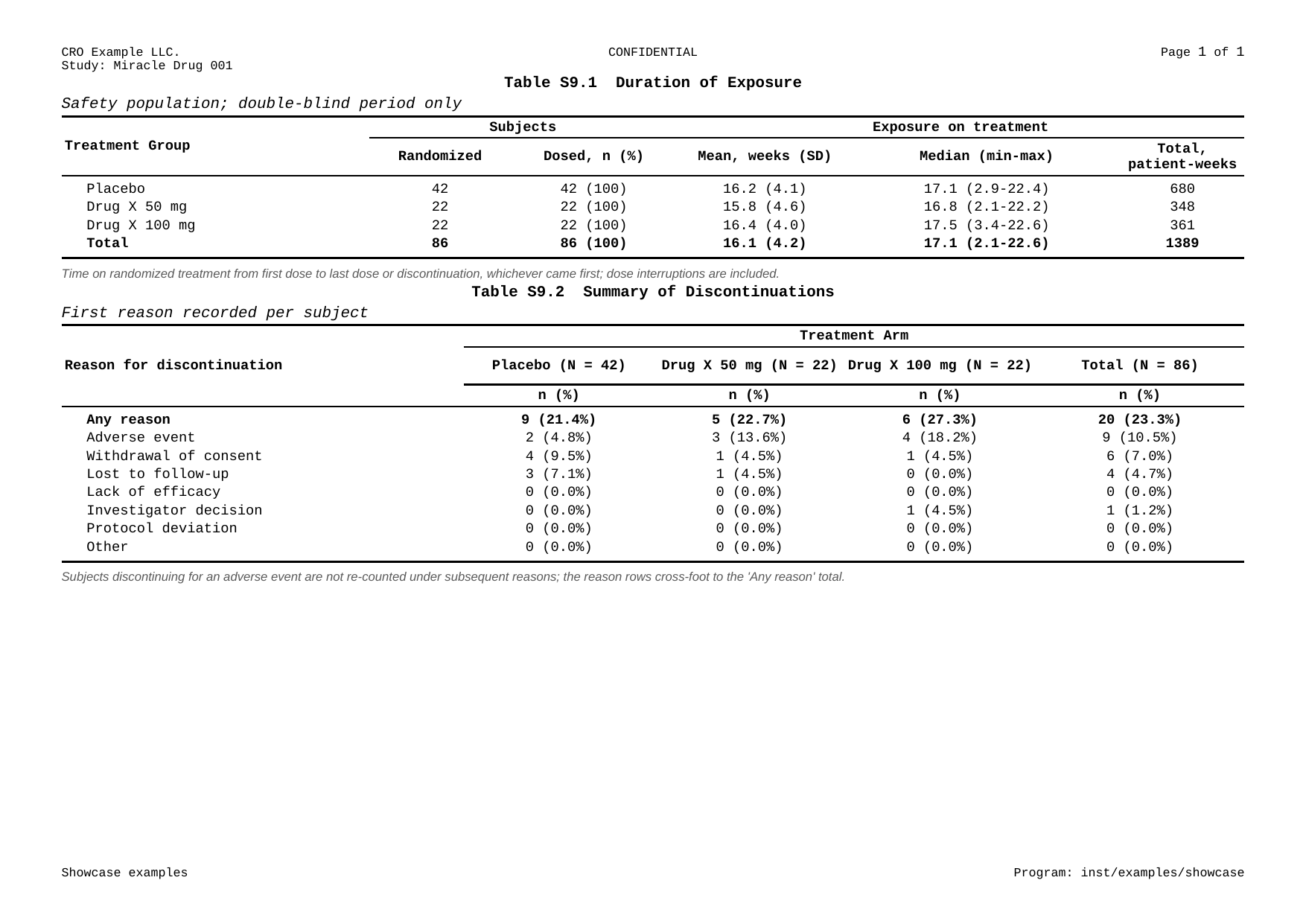

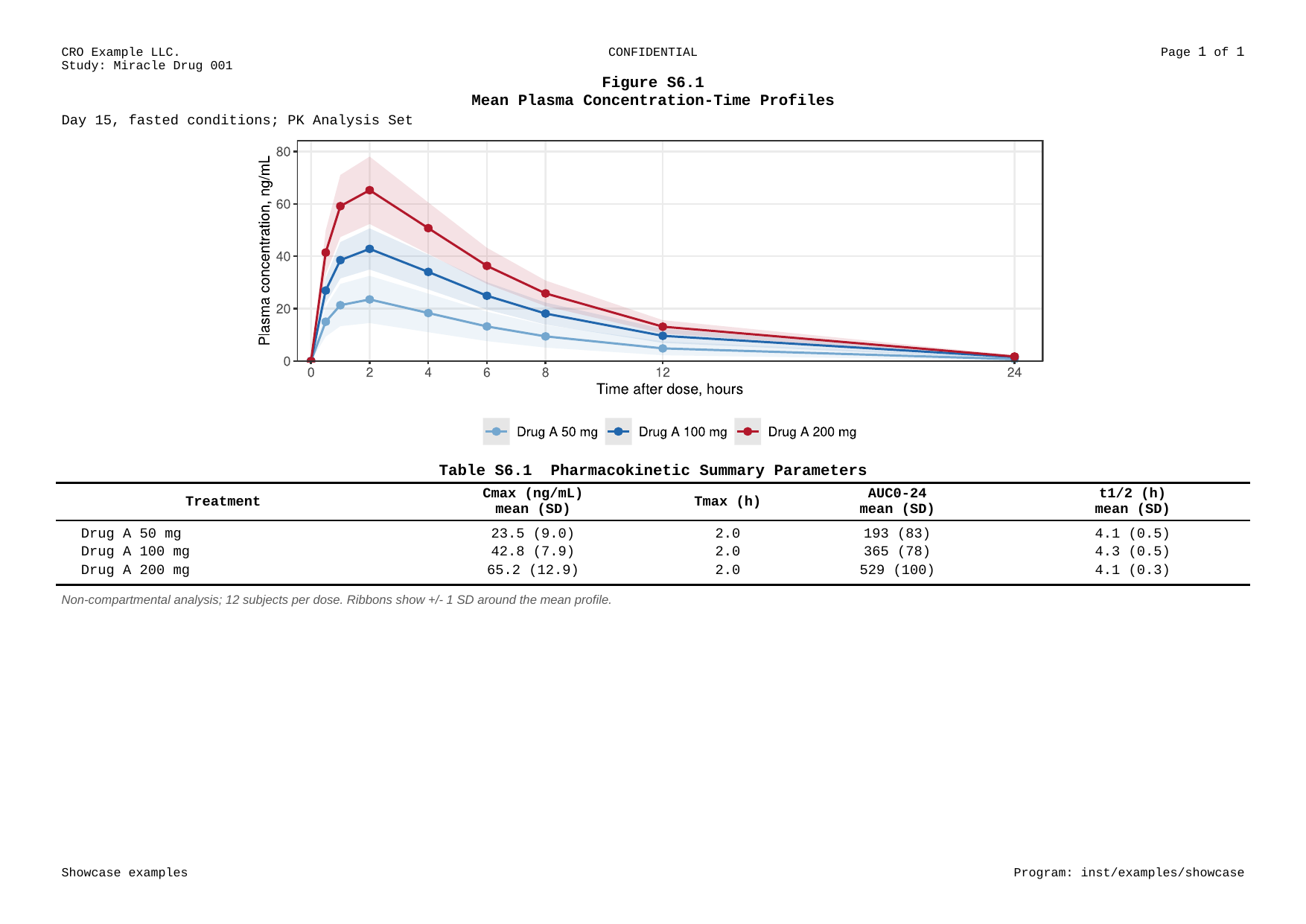

Documentation: https://crow16384.github.io/ksTFL/

📄 Download Cheatsheet (PDF)

Installation

ksTFL is available as pre-compiled binaries (recommended for most users) and from source (for development or when binaries are unavailable).

Binary Installation (Recommended)

Pre-compiled binaries are available for R 4.5 and R 4.6 on Windows, Ubuntu/Debian, macOS (ARM), and Fedora/RHEL.

From R-universe (All platforms)

The simplest method that works across all platforms:

install.packages('ksTFL', repos = c('https://crow16384.r-universe.dev', 'https://cloud.r-project.org'))

R-universe automatically detects your platform and installs the appropriate pre-compiled binary.

Windows

install.packages("ksTFL",
                 repos = "https://crow16384.github.io/ksTFL-release",
                 type  = "binary")

Linux — Ubuntu / Debian

install.packages("ksTFL",
                 repos = "https://crow16384.github.io/ksTFL-release/bin/linux/ubuntu-noble")

No extra HarfBuzz, FreeType, or minizip runtime packages are required. Linux builds are shipped with those libraries compiled from vendored source.

Linux — Fedora / RHEL

install.packages("ksTFL",
                 repos = "https://crow16384.github.io/ksTFL-release/bin/linux/fedora")

No extra HarfBuzz, FreeType, or minizip runtime packages are required. Linux builds are shipped with those libraries compiled from vendored source.

macOS

macOS binaries are published as GitHub Release assets and can be installed from a downloaded .tgz file:

install.packages("ksTFL_<version>.tgz", repos = NULL)

When a macOS binary is available in the CRAN-like repo, you can also use:

install.packages("ksTFL",
                 repos = "https://crow16384.github.io/ksTFL-release",
                 type  = "binary")

From a downloaded file

Pre-built packages can be downloaded from the Releases page and installed directly:

# Linux (.tar.gz binary)
install.packages("ksTFL_<version>_R_x86_64-pc-linux-gnu.tar.gz", repos = NULL)

# Windows (.zip)
install.packages("ksTFL_<version>.zip", repos = NULL)

# macOS (.tgz)
install.packages("ksTFL_<version>.tgz", repos = NULL)

Release repository: https://github.com/crow16384/ksTFL-release

Source Installation

For development or when pre-compiled binaries are unavailable, install from source. This requires a C++20-compatible compiler and R development tools.

Prerequisites

Windows: - Install Rtools matching your R version

macOS: - Install Xcode Command Line Tools: xcode-select --install

Linux: - Install build essentials: sudo apt-get install -y build-essential (Debian/Ubuntu) or sudo dnf install gcc-c++ make (Fedora/RHEL)

From GitHub

# Using remotes
install.packages("remotes")
remotes::install_github("crow16384/ksTFL")

# Or using pak
install.packages("pak")
pak::pkg_install("crow16384/ksTFL")

From a local clone

git clone https://github.com/crow16384/ksTFL.git
cd ksTFL

# From R, in the package directory
install.packages(".", repos = NULL, type = "source")

# Or using devtools/remotes
remotes::install_local(".")

Dependencies

install.packages() resolves and installs declared Imports automatically from CRAN. If you need to install them manually — for example after installing from source or a local file — run:

# Using pak (recommended)
pak::local_install_deps()

# Using remotes / devtools
remotes::install_deps(dependencies = TRUE)

Required packages (Imports): cli, checkmate, jsonlite, purrr, rlang, tidyselect, digest, htmltools, rstudioapi, Rcpp

Optional packages required for shiny addins to work: shiny, colourpicker, sortable, shinyFiles

Fonts note

Proprietary Microsoft fonts (Arial, Times New Roman, etc.) are not bundled due to licensing restrictions; open-source Liberation fonts are included as metrically compatible fallbacks. Windows and macOS systems with Microsoft Office installed typically have the original fonts already available. On Linux, additional steps may be required — see Font Management for details.

Quick Start Example

library(ksTFL)

# 1. Initialize a table specification
spec <- create_table(mtcars, cols = c(cyl, mpg, hp, wt))

# 2. Add document content
spec <- spec |>
  add_title("Motor Trend Car Road Tests", styleRef = "i") |>
  add_title("Performance Metrics by Cylinder Count", styleRef = "i") |>
  add_subtitle("Number of Cylinders: #ByGroup1", styleRef = f_combine("fc_blue", "tw_50")) |>
  add_footnote("Source: 1974 Motor Trend US magazine", styleRef = "tw_50")

# 3. Define column properties
spec <- spec |>
  define_cols(c(mpg, hp, wt),
              label = c("Miles/(US) gallon", "Horsepower", "Weight<br>(1000 lbs)"),
              valueStyleRef = "ac"
              ) |>
  define_cols(cyl,
              isGrouping = TRUE,
              isVisible =  FALSE)

# 4. Apply conditional row styling
spec <- spec |>
  compute_cols(hp > 200,
               c_style(hp, styleRef = "fc_red"))

spec <- spec |> set_document(contentWidth = "50%")

# 5. Create report and render to DOCX
report <- create_report(spec)

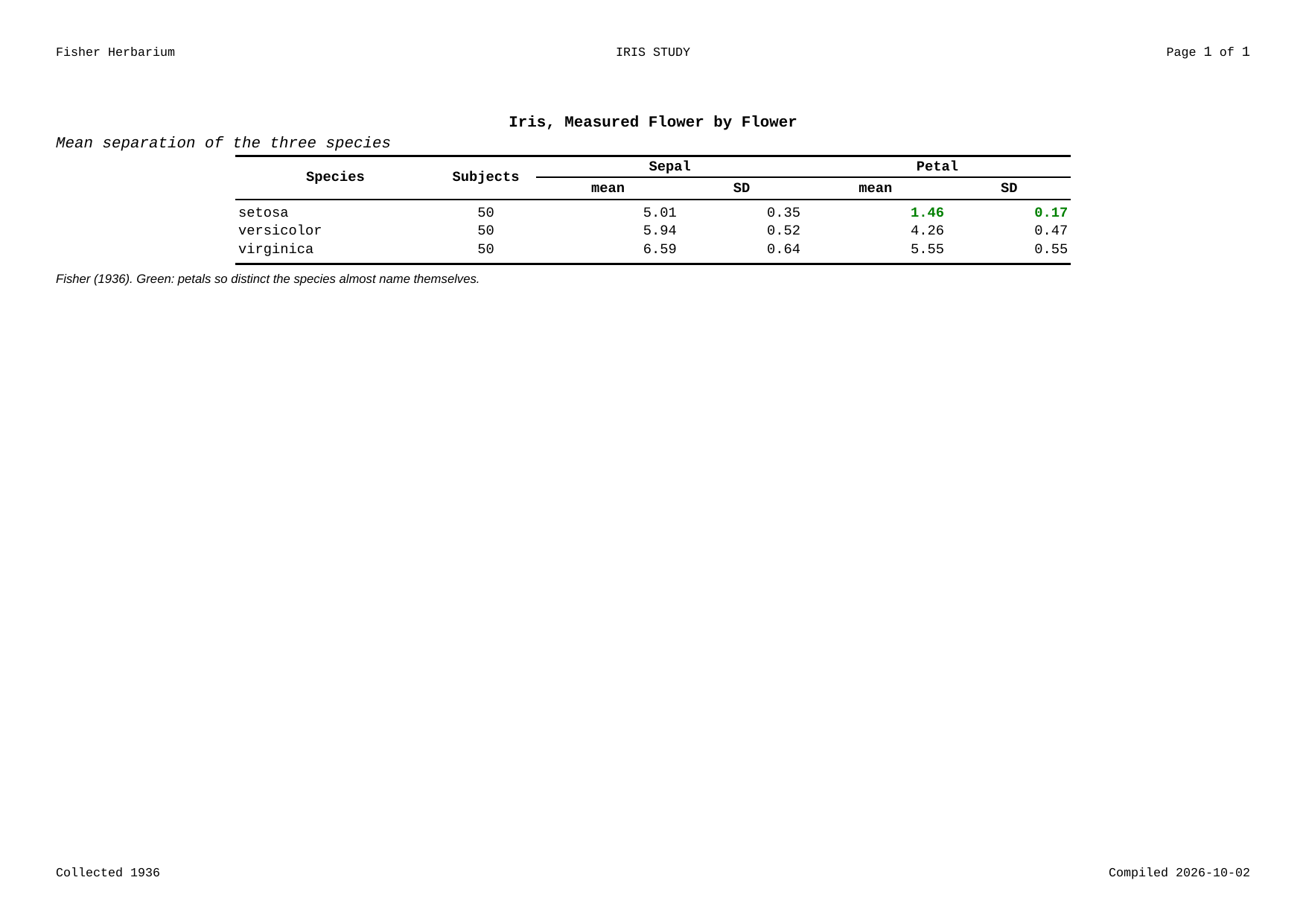

API Reference

Document Initialization

Create specification objects for different document types:

Function	Purpose	Typical usage
`create_table(data, cols = everything())`	Start a table specification from a data frame	`create_table(adsl, cols = c(USUBJID, AGE, TRT01A))`
`create_figure(plot_or_path, dpi = 300L)`	Start a figure specification from a file path or ggplot object	`create_figure(p)` or `create_figure("figures/pk_plot.png")`
`create_text()`	Start a text-only specification for narratives and notes	`create_text() \|> add_body_text("No protocol deviations.")`

Content Functions

Add document elements to specifications:

Function	What it adds	Practical usage notes
`add_title(spec, text, id, styleRef, order)`	Main document title rows	Use `toclevel` when you want entries in TOC. `styleRef` can be a named style or `f_combine(...)`.
`add_subtitle(spec, text, id, styleRef, order)`	Secondary title rows	Useful for dynamic section context such as group labels. Also supports `toclevel`.
`add_footnote(spec, text, id, styleRef, order)`	Footnotes tied to table/figure/text output	Placement is controlled by `footnotePlace` in `set_document()` / options.
`add_body_text(spec, text, id, styleRef, order)`	Narrative paragraphs inside Text specs, or fallback text	Great for listings, narrative outputs, and no-data messages.
`add_header(spec, ..., level)`	Page header rows (left/center/right cells)	Up to 3 cells per row; combine with `tfl_set_options(add_header(...))` for session defaults.
`add_footer(spec, ..., level)`	Page footer rows (left/center/right cells)	Works like headers; useful for confidentiality and page metadata.
`add_span_header(spec, cols, label, stubOrder, id, labelStyleRef)`	Multi-column group headers above labels	`stubOrder` controls hierarchy depth; use same `stubOrder` for siblings in one header row.

Column Configuration

Define column properties and formatting:

define_cols(spec, cols, label, isVisible, isID, isGrouping, isPaging,
            labelStyleRef, isColBreak, dedupe, blankAfter,
            type, format, missings, colWidth, valueStyleRef)

Column Parameters (all support 1-or-n vectorized values):

Parameter	Purpose	Example
`label`	Column display labels	`"Age (years)"`
`isVisible`	Show/hide columns (hidden = 0 width, data still accessible)	`TRUE` / `FALSE`
`isID`	Identify key columns	`TRUE`
`isGrouping`	Enable grouping behavior (boundary detection for dedup/subtitles)	`TRUE`
`isPaging`	Force page breaks on value change	`TRUE`
`labelStyleRef`	Style reference for column headers	`"header_bold"`
`valueStyleRef`	Style reference for cell values	`"numeric_right"`
`isColBreak`	Mark horizontal pagination break point	`TRUE`
`dedupe`	Remove duplicate consecutive values	`TRUE`
`blankAfter`	Insert blank row after value change	`TRUE`
`type`	Override auto-detected column type	`"numeric"` / `"string"`
`format`	Override auto-detected display format	`"%.1f"` / `"%d"`
`missings`	Custom representation for missing values	`"N/A"`
`colWidth`	Set width (%, cm, pt, in, mm, auto)	`"25%"` / `"3cm"`

Conditional Row Styling

compute_cols() is the parent rule function. You define one condition and pass one or more action helpers as sibling arguments in the same call.

Layer	Function	What it does	Example
Parent rule	`compute_cols(spec, condition, ...)`	Evaluates `condition` row-wise during `create_report()` and applies all provided actions to matching rows	`compute_cols(spec, AGE > 65, c_style(AGE, "b"), c_addrow("above"))`
Action helper	`c_style(cols, styleRef)`	Apply style(s) to selected columns in matching rows	`c_style(c(PARAM, AVAL), styleRef = f_combine("b", "fc_red"))`
Action helper	`c_merge(cols, styleRef = NULL)`	Merge adjacent columns into one displayed span in matching rows	`c_merge(c(TRT_A, TRT_B), styleRef = "ac")`
Action helper	`c_addrow(pos, value_from = NULL, styleRef = NULL)`	Insert a row above/below matching rows, optionally populated from a source column	`c_addrow("below", value_from = PARAM)`
Action helper	`c_pageBreak()`	Force a page break at matching rows	`c_pageBreak()`
Action helper	`c_glue(cols, position, glue_col = NULL, text = NULL, separator = NULL)`	Append/prepend a column value or literal text to existing cell text	`c_glue(PARAM, "after", glue_col = UNIT, separator = " ")`
Action helper	`c_clear(cols)`	Clear displayed text in selected cells while keeping structure/styling	`c_clear(PARAM)`

Helper Functions for Conditions:

These helpers exist because many reporting rules are boundary-based (first row in a group, last row in a block, alternating stripes, etc.) and are hard to express clearly with raw boolean logic alone.

Helper	What it returns	When it is most useful
`firstOf(...)`	`TRUE` at first row of each unique value combination	Insert section headers, style group starts, trigger page breaks at group boundaries
`lastOf(...)`	`TRUE` at last row of each unique value combination	Add subtotal/summary rows, blank-after separators, final group emphasis
`firstRow()`	`TRUE` only for row 1	Add top banners, first-row highlights, initial spacing rows
`lastRow()`	`TRUE` only for last row	Add closing notes, final-row separators, tail summaries
`everyNth(n)`	`TRUE` on rows `1, n+1, 2n+1, ...`	Zebra striping and periodic visual guides in dense listings
`rowNumber()`	1-based integer row index	Positional rules such as “top 5”, modulo patterns, custom ranking displays
`firstOfBlock(col, n, offset)`	`TRUE` at first row of every `n`-th block by `col`	Controlled periodic headers/page breaks in repeating grouped structures

Style Definitions

Define and compose styles:

ksTFL already ships with a large set of predefined atomic styles (font, alignment, spacing, borders, colors, indentation, etc.). In many real workflows you do not need to author many new styles: combine existing atoms with f_combine() and add only a small number of study-specific named styles.

Function	Purpose	Affects in MS Word output
`add_style(spec, id, ...)`	Define a reusable named style	Creates/updates a style entry used later by `styleRef` fields
`s_font(font_name, font_size, bold, italic, underline, color, highlight)`	Run-level text appearance	Font family, size, emphasis, text color, highlight/shading
`s_paragraph(alignment, spacing, indents, ...)`	Paragraph block formatting	Alignment, spacing, indentation, keep-with-next / keep-lines behaviors
`s_spacing(before, after, line_spacing)`	Paragraph spacing micro-control	Space before/after paragraph and line spacing
`s_indents(left, right, first_line)`	Paragraph indentation control	Left/right indents and first-line/hanging indent behavior
`s_table_style(background_color, row_height, topEmptyLine, bottomEmptyLine, vertical_alignment, text_orientation, borders)`	Cell and row presentation	Cell fill, row height, vertical align, text direction, cell borders
`s_borders(top, bottom, left, right)`	Border set for cell edges	Border presence/style on each side of a cell
`s_border(color, width, line_style)`	One border edge definition	Border color, thickness, and line style (single/double/etc.)
`f_combine(...)`	Combine multiple style references	Merge several style refs into one effective style application

Context-Based Nesting Rules:

s_font(), s_paragraph(), s_table_style() — direct children of add_style()
s_borders() — must be inside s_table_style(borders = s_borders(...))
s_spacing(), s_indents() — must be inside s_paragraph()
Built-in target font atoms are available for direct styleRef composition: font_arial, font_courier_new, font_times_new_roman, font_georgia, font_verdana, font_trebuchet_ms

Example Style Definition:

# Define one reusable custom style (study-specific)
spec <- add_style(spec, id = "header_style",
  s_font(font_name = "Arial", font_size = "12pt", bold = TRUE, color = "#333333"),
  s_paragraph(alignment = "center", spacing = s_spacing(after = "6pt")),
  s_table_style(background_color = "#E8E8E8", borders = s_borders(
    bottom = s_border(color = "black", width = "2pt", line_style = "double")
  ))
)

# Use the custom style directly
spec <- add_title(spec, "Table 14.1 Demographics", styleRef = "header_style")

# Combine the custom style with built-in atomic styles for a specific context:
# - "tw_80": narrow text block width
# - "fc_navy": override font color to navy
spec <- add_footnote(
  spec,
  "Source: ADSL",
  styleRef = f_combine("header_style", "tw_80", "fc_navy")
)

# Use only built-in atoms when no custom style is needed
spec <- define_cols(spec, mpg, valueStyleRef = f_combine("font_verdana", "fs_10", "ar"))

Document Configuration

Configure document-level settings:

Function	What it configures	Most useful parameters and behavior
`set_document(spec, ...)`	Spec-level document behavior and figure settings	`hasData`, `footnotePlace`, `contentWidth`, `isContinues`, `continuousSection`, `docTemplate`, `figureWidth`, `figureHeight`, `figureDevice`, `figureScaleMode`, `topEmptyLine`, `bottomEmptyLine`
`set_page_style(spec, docTemplate, page)`	Template + page geometry for the spec	Use bundled template name or JSON path for `docTemplate`; use `page = p_page(...)` for size/orientation/margins
`p_page(size, orientation, margins)`	Structured page descriptor used by `set_page_style()`	Typical values: `"A4"`, `"Letter"`, `"Legal"`; `"portrait"` or `"landscape"`; margins from `p_margins(...)`
`p_margins(top, bottom, left, right, header, footer)`	Margin distances for page/body/header/footer zones	All inputs support dimension strings like `"1in"`, `"2.54cm"`, `"72pt"`, `"25mm"`

Practical guidance:

Use set_document() for per-spec behavior and content logic.
Use set_page_style() when you need layout/template changes.
Use continuousSection = TRUE only when a following spec should continue on the same page as the previous one.
Use isContinues = TRUE when repeated titles/subtitles on each page are not desired.

Document Templates

Templates are JSON style/layout presets used by the renderer as the visual baseline for each spec. A template typically defines:

Page defaults (size, orientation, margins)
Region text styles (titles, subtitles, footnotes, body text, doc header/footer)
Table defaults (header/body styling, structural borders/backgrounds)
Figure defaults (caption and placement-related style defaults)

Why templates are needed:

They provide consistent branding and submission formatting across outputs.
They keep repeated visual rules out of analysis code.
They let one pipeline render different document families (for example, CRO-internal vs sponsor-facing formats) by switching template only.

How templates interact with user-defined styles:

Template styles are the baseline.
add_style() definitions and styleRef values are merged on top of template defaults.
f_combine(...) merges multiple refs in order (last wins for overlapping properties).
Inline markup in text (for example ...) has highest run-level priority.

Practical precedence (high level):

Template defaults
Template region/structural styles
Column- and content-level styleRef
Row-action style refs (compute_cols actions)
Inline text markup

Template-only controls (not overridable by add_style() / styleRef):

Table layout switches from template layout: table_alignment, allow_row_break_across_pages, repeat_header_on_each_page
Structural table borders from template structural section: header_top_border, header_bottom_border, table_bottom_border
Default table cell margins from template layout (default_cell_margin_*)
Figure layout behavior from template figure style: caption position (above/below), figure alignment, and default caption spacing
Base document header/footer and TOC style regions (docHeader, docFooter, tocTitle, tocEntry) in normal API usage

Important distinction:

styleRef and add_style() are for text/cell style composition.
Template settings above are layout/structural controls and must be changed in the template JSON (or by selecting a different template), not via styleRef.
Page geometry can still be overridden per spec via set_page_style(page = p_page(...)); that is a page override, not a style override.

How to choose the template source:

Per-spec template: set docTemplate on each spec (set_page_style() or options).
Global render override: pass overrideTemplate in write_doc()/ replay_report() to force one template for the full output.
Discover bundled templates with tfl_list_templates().

# Per-spec template selection
spec <- create_table(adsl) |>
  set_page_style(docTemplate = "Navy_Pro") |>
  add_style(id = "study_title", s_font(bold = TRUE, color = "#1F3864")) |>
  add_title("Table 14.1: Demographics", styleRef = f_combine("study_title", "tw_80"))

report <- create_report(spec)

# Optional global override: forces one template for all specs in this render
write_doc(report, name = "t14_1", overrideTemplate = "CRO Example_default")

Report Assembly & Rendering

Combine specifications into reports and render to DOCX:

Function	Purpose	Why/when to use it
`create_report(...)`	Assemble one or many specs into a report object	Use before output to consolidate styles, finalize deferred row actions, and assign document order/data references
`save_report(report, docFileName, outDir, metaPath, prettify, insertTOC, tocTitle)`	Persist report metadata and payload files to disk	Use for audit trails, CI artifacts, reproducibility, or debugging JSON before rendering
`write_doc(report, name, outDir, metaPath, prettify, toc, tocTitle, overrideTemplate, font_dirs, fallback_font, verbose)`	One-step save + render path	Best default for production pipelines when you want final DOCX output immediately
`replay_report(spec_json, meta_dir, output_path, template_json, overrideTemplate, insertTOC, tocTitle, verbose)`	Render from saved JSON (single or merged multi-report inputs)	Use for exact re-rendering, delayed rendering on another machine, and combining previously saved outputs

How the output layers fit together:

Layer	Output	Why it matters
In-memory assembly (`create_report`)	A coherent in-memory report object with resolved style refs and evaluated row-action metadata	Ensures the document is fully prepared before persistence or rendering
Persistent metadata (`save_report`)	Spec JSON + referenced data/figure payloads + metadata index	Enables reproducibility, handoff, and diff/debug of rendering inputs
One-step production (`write_doc`)	Final DOCX plus persisted metadata bundle	Simplest path for routine report generation
Replay (`replay_report`)	DOCX rendered from saved metadata without rebuilding specs in R	Supports deterministic regeneration, centralized rendering, and multi-document merge workflows

create_report() Features:

Consolidates styles across specs (deduplicates merged styles)
Validates all style references exist
Assigns sequential document order
Generates unique data references
Evaluates deferred compute_cols() conditions against data environment
Supports mixing TFL_spec and TFL_report objects

save_report() Parameters:

report: A TFL_report object from create_report()
docFileName: Output filename (e.g., "report.docx")
outDir: Output directory (defaults to tfl_options)
metaPath: Directory for metadata/data files (defaults to tempdir())
prettify: If TRUE, formats JSON output for debugging

write_doc() Parameters:

report: A TFL_report object from create_report()
name: Base output filename (without .docx)
outDir: Output directory for the final DOCX
metaPath: Directory for metadata/data files
overrideTemplate: Optional global template override (name or JSON path)
font_dirs: Additional font search directories (optional)
fallback_font: Custom fallback font path (optional)
verbose: Print progress messages (default: FALSE)

Package Options

Configure global defaults that apply to all specs in a session:

Function	Purpose
`tfl_set_options(...)`	Set package-level options (replaces, not accumulates)
`tfl_get_options()`	Retrieve all current options
`tfl_get_option(name)`	Retrieve single option value
`tfl_reset_options()`	Reset all options to defaults
`tfl_list_templates()`	List available bundled document templates

All Configurable Parameters:

Parameter	Default	Type	Description
`docTemplate`	`"Default"`	Character	Document style template (bundled name or path to JSON). Use `tfl_list_templates()` to list available embedded templates, or use template editor shiny addin to create your own
`contentWidth`	`"100%"`	Character	Main content area width (e.g., `"95%"`, `"16.51cm"`, `"6.5in"`)
`footnotePlace`	`"repeated"`	Character	Footnote placement: `"repeated"` (every page), `"last_page"`, or `"doc_footer"`
`isContinues`	`FALSE`	Logical	Suppress repeating headers on every page of the document
`missings`	`"NA"`	Character	Default representation for missing/NA values (e.g., `"."`, `"---"`, `"N/A"`)
`autoColWidth`	`TRUE`	Logical	Auto-recalculate unlocked column widths; when `FALSE` manage all widths manually
`minColWidth`	`0.5`	Numeric	Minimum relative width (%) for unlocked columns during auto-recalculation
`figureWidth`	`"6in"`	Character	Default figure width (e.g., `"70%"`, `"6.5in"`, `"16.51cm"`)
`figureHeight`	`"4in"`	Character	Default figure height (same format as `figureWidth`)
`figureDevice`	`"svg"`	Character	Graphics device for ggplot2 rendering: `"svg"`, `"png"`, `"jpeg"`
`figureScaleMode`	`"fixed"`	Character	Figure scaling: `"fixed"`, `"fitWidth"` (scale to page width), `"fitPage"`
`insertTOC`	`FALSE`	Logical	Prepend a Table of Contents page (requires `toclevel` on titles)
`tocTitle`	`"Table of Contents"`	Character	TOC page heading; use `""` to omit
`output_directory`	`"."`	Character	Default output directory for rendered documents
`meta_directory`	`NULL`	Character	Directory for intermediate metadata files; `NULL` defaults to output dir or temp

Page Layout (via set_page_style() or tfl_set_options(set_page_style(...))):

Parameter	Default	Valid Values
`page.size`	`"A4"`	`"A4"`, `"A3"`, `"Letter"`, `"Legal"`, `"Executive"`
`page.orientation`	`"landscape"`	`"portrait"`, `"landscape"`
`page.margins`	Template default	Created via `p_margins(top, bottom, left, right, header, footer)` — all accept dimension strings (e.g., `"25mm"`, `"1in"`, `"2.54cm"`, `"72pt"`)

Shared Content — define once, applied to every spec:

Predefined styles: tfl_set_options(add_style(id = "my_style", s_font(bold = TRUE))) — available in all specs via styleRef
Default headers/footers: tfl_set_options(add_header("Left", "Center", "Right")) — up to 3 cells per row
Default body text: tfl_set_options(add_body_text("No data to report")) — shown when spec has no data

# Example: configure session-wide defaults
tfl_set_options(
  contentWidth = "95%",
  missings     = ".",
  footnotePlace = "last_page",
  set_page_style(
    page = p_page(size = "Letter", orientation = "landscape",
                  margins = p_margins(top = "1in", bottom = "1in",
                                      left = "0.75in", right = "0.75in"))
  ),
  add_header("Company Name", "", "Page {PAGE} of {NUMPAGES}"),
  add_footer("Confidential", "", format(Sys.Date(), "%Y-%m-%d")),
  add_style(id = "alert", s_font(color = "#FF0000", bold = TRUE))
)

Atomic Styles (Built-in Style Atoms)

ksTFL ships with 100+ atomic styles — single-property building blocks that can be used directly as styleRef values or combined with f_combine(). Each atom sets exactly one visual property, making styles composable and predictable. Use tfl_print_style_atoms() to print all available atomic styles, or use the add-in to call this function.

Usage: pass atom IDs directly to any styleRef parameter, or combine multiple atoms:

# Single atom
spec <- add_title(spec, "Demographics", styleRef = "b")

# Combine atoms with f_combine()
spec <- define_cols(spec, mpg,
  # `f_combine` used to merge atomic style to build the complex style on the fly
  valueStyleRef = f_combine("font_verdana", "fs_10", "ar"))

spec <- add_footnote(spec, "Source: study database.",
  styleRef = f_combine("i", "fc_gray", "tw_80"))

Font — Decoration

Atom	Alias	Effect
`b`	`font_bold`	Bold
`i`	`font_italic`	Italic
`u`	`font_underline`	Underline

Font — Family

Atom	Font
`font_arial`	Arial
`font_courier_new`	Courier New
`font_times_new_roman`	Times New Roman
`font_georgia`	Georgia
`font_verdana`	Verdana
`font_trebuchet_ms`	Trebuchet MS

Font — Size (fs_7 through fs_11): fs_7, fs_8, fs_9, fs_10, fs_11 (7–11 pt)

Font — Color

Atom	Hex	Use Case
`fc_black`	#000000	Default / reset
`fc_red`	#FF0000	Alert / out-of-range
`fc_blue`	#0000FF	Informational
`fc_green`	#008000	Within-range / pass
`fc_gray` / `fc_grey`	#595959	Secondary / reference
`fc_navy`	#1F3864	Dark formal headers
`fc_teal`	#2E75B6	Medium blue
`fc_olive`	#5C7A29	Muted green
`fc_rust`	#C0392B	Muted red / caution
`fc_plum`	#7B2D8B	Purple / special
`fc_slate`	#44546A	Blue-gray / subdued

Text Highlight (background shading behind text)

Atom	Hex	Atom	Hex
`hl_yellow`	#FFFF00	`hl_peach`	#FADADD
`hl_red`	#FF0000	`hl_mint`	#D5F5E3
`hl_green`	#90EE90	`hl_sky`	#D6EAF8
`hl_gray` / `hl_grey`	#EEEEEE	`hl_lemon`	#FEFBD8
		`hl_lilac`	#E8DAEF

Paragraph — Alignment

Atom	Alias	Alignment
`al`	`text_left`	Left
`ac`	`text_center`	Center
`ar`	`text_right`	Right

Paragraph — Indentation (0.5 cm steps): ind0–ind4 (left), rind0–rind4 (right). Aliases: indent_0–indent_4, rindent_0–rindent_4.

Paragraph — Table-Width Shrink (tw_95–tw_50 in 5% steps): symmetric left+right indent to align titles/footnotes/body text with a narrower table. Calculated for A4 landscape with 0.5 in margins.

Paragraph — Spacing: sp_0 (0 pt), sp_2 (2 pt), sp_4 (4 pt) — before and after, line spacing 1.0.

Paragraph — Pagination: kl (keep lines together on same page), kn (keep with next row).

Cell — Vertical Alignment: va_t / va_top, va_m / va_center, va_b / va_bottom.

Cell — Text Orientation: to_h / text_horizontal, to_90 / text_vertical_90 (bottom-to-top), to_270 / text_vertical_270 (top-to-bottom).

Cell — Background Color

Atom	Hex	Atom	Hex
`bg_blue`	#D9E1F2	`bg_peach`	#FADADD
`bg_gray` / `bg_grey`	#F2F2F2	`bg_mint`	#D5F5E3
`bg_navy`	#1F3864	`bg_sky`	#D6EAF8
`bg_slate`	#44546A	`bg_lemon`	#FEFBD8
`bg_steel`	#BDD7EE	`bg_lilac`	#E8DAEF

Row Height (spacer rows): row_h2 (2 pt), row_h4 (4 pt), row_h6 (6 pt).

Borders: bt, bb, bl, br (1 pt black, single line); bt_th, bb_th (0.5 pt thin); bc_gray/bc_grey (color override to gray), bc_white (suppress all borders).

Group Header Composites: grp_hdr (bold + indent reset + 4 pt space-before), grp_hdr_i (bold + italic + indent reset + 4 pt space-before).

# Compose atoms for a styled separator row
spec <- compute_cols(spec, lastOf(category),
  c_addrow("below", category,
           styleRef = f_combine("row_h2", "bb_th", "bc_gray")))

# Group header with bold + space above
spec <- compute_cols(spec, firstOf(param),
  c_addrow("above", param, styleRef = "grp_hdr"))

Inline Text Markup

ksTFL supports HTML-like inline markup tags in any text content — cell values, column labels, titles, subtitles, footnotes, headers, footers, and body text. Tags are parsed by the C++ rendering engine and converted to styled OOXML runs in the output DOCX.

Supported Tags:

Tag	Effect	Example
`<b>...</b>`	Bold	`"Total: <b>125</b> subjects"`
`<i>...</i>`	Italic	`"p-value<i>(two-sided)</i>"`
`<u>...</u>`	Underline	`"See <u>Table 14.1</u>"`
`<s>...</s>`	~~Strikethrough~~	`"<s>Deprecated</s> Updated"`
`<sup>...</sup>`	Superscript	`"E=mc<sup>2</sup>"`
`<sub>...</sub>`	Subscript	`"H<sub>2</sub>O"`
`<br>` or `<br/>`	Line break (soft, within same paragraph)	`"Revenue<br>(Millions of $)"`
`<p>`	Paragraph break (starts a new paragraph)	`"First paragraph<p>Second paragraph"`

Key Characteristics:

Nesting: fully supported — bold italic
Case-insensitive: , , both work
Literal tag text: escape < with backslash — e.g. \literal\ renders as literal
No attributes: tags carry no attributes; use the style system for colors, fonts, etc.
Unknown tags are ignored: unrecognized tags are silently stripped, content preserved
Priority: inline markup overrides all style-system settings (template, column, row styles)

Common Patterns:

# Multi-line column headers
define_cols(spec, c(drug, placebo, total),
  label = c("DrugX<br>(N=160)", "Placebo<br>(N=158)", "Total<br>(N=318)"))

# Superscripts in footnotes
add_footnote(spec, "* p<0.05; <sup>†</sup> adjusted for baseline")

# Bold key values in titles
add_title(spec, "Table 14.1: <b>Demographics</b> and Baseline Characteristics")

# Subscript in chemical formulas
add_body_text(spec, "Concentration of CO<sub>2</sub> measured in ppm")

# Nested formatting
add_footnote(spec, "<b><i>Note:</i></b> All values are <u>least-squares means</u>")

# Paragraph breaks in body text
add_body_text(spec, "Section 1 summary.<p>Section 2 begins here.")

# Render literal tag markers (not parsed as markup)
add_body_text(spec, "Use \\<i>literal\\</i> to show tag text")

Note:  and  are mutually exclusive — if nested, the innermost tag takes effect.

Workflow Architecture

1. Specification Creation
   └─> create_table() / create_figure() / create_text()
       └─> Returns TFL_spec with initialized structure

2. Content & Styling
   └─> add_title(), add_subtitle(), add_footnote()
   └─> define_cols() — column configuration
   └─> add_style() — define named styles
   └─> compute_cols() — conditional row styling
   └─> set_document() — document metadata
   └─> set_page_style() — page layout & template

3. Report Assembly
   └─> create_report() — combines multiple specs
       └─> Style consolidation & validation
       └─> Sequential ordering & data references
       └─> Deferred condition evaluation

4. Export
   └─> save_report() — JSON spec + data files to disk

5. Rendering
  └─> write_doc() / replay_report() — C++ engine produces styled .docx
       └─> HarfBuzz text shaping → deterministic pagination
       └─> OOXML emission → valid .docx (ZIP) package

Key Features

1. Tidyselect Integration

Use tidyselect expressions for intuitive column selection:

define_cols(spec, starts_with("lab_"), colWidth = "15%")
define_cols(spec, c(id, age, sex), isID = TRUE)
define_cols(spec, where(is.numeric), colWidth = "auto")

2. Style Consolidation

create_report() automatically:

Merges f_combine("style1", "style2") into single style_<hash>
Detects and reuses identical merged styles
Removes unreferenced styles
Validates all style references exist

3. Schema Validation

All specifications validated against JSON schema:

Type checking for all fields
Enum validation for constrained values
Pattern matching for formatted strings (colors, dimensions)
Ensures compatibility with C++ renderer

4. Data Environment

Original data preserved (shadow-copy) in spec object for:

Conditional expressions in compute_cols()
Helper functions (firstOf(), lastOf(), etc.)
Deferred evaluation until create_report()

5. Vectorized Parameters

Most functions support vectorized inputs:

# Single value recycled
define_cols(spec, c(col1, col2, col3), colWidth = "33%")

# Individual values per column
define_cols(spec, c(col1, col2, col3), colWidth = c("20%", "30%", "50%"))

6. Built-in DOCX Renderer

The rendering engine provides a complete end-to-end pipeline:

Pixel-perfect text shaping for deterministic text measurement
FreeType font loading with automatic system font scanning and open-source fallback chain (Arial → Liberation Sans, Times New Roman → Liberation Serif, Courier New → Liberation Mono, Georgia → Liberation Serif, Verdana → Liberation Sans, Trebuchet MS → Liberation Sans)
Vertical & horizontal pagination with configurable page break rules
Support for all 3 document types (Table, Figure, Text)
Per-spec template rendering in multi-spec reports (mixed docTemplate values)
Automatic TOC embedding in generated documents
Configurable style templates (CRO Example_default bundled)

7. Font Management

ksTFL automatically discovers fonts installed on the operating system at package load time. The C++ font scanner inspects platform-specific directories (Windows font folders, macOS system/user Library, Linux freedesktop paths) and builds a font registry. System-installed proprietary fonts are always preferred; only when a target font is missing does the package fall back to a bundled open-source alternative.

Target fonts and fallbacks:

Target Font	Fallback (bundled)	License
Arial	Liberation Sans	SIL OFL 1.1
Times New Roman	Liberation Serif	SIL OFL 1.1
Courier New	Liberation Mono	SIL OFL 1.1
Georgia	Liberation Serif	SIL OFL 1.1
Verdana	Liberation Sans	SIL OFL 1.1
Trebuchet MS	Liberation Sans	SIL OFL 1.1

Why proprietary fonts are not bundled

Arial, Times New Roman, Courier New, Georgia, Verdana, and Trebuchet MS are proprietary fonts owned by Microsoft and/or Monotype. Their license prohibits redistribution inside open-source packages. ksTFL therefore bundles only the Liberation family (SIL OFL 1.1) as metrically compatible fallbacks. For pixel-perfect output matching corporate templates, install the original Microsoft fonts on the host system.

Installing Microsoft core fonts on Linux

The ttf-mscorefonts-installer package downloads and installs the Microsoft TrueType core fonts (Arial, Times New Roman, Courier New, Georgia, Verdana, Trebuchet MS, and others) from SourceForge. It is available in most Linux distribution repositories.

Debian / Ubuntu:

sudo apt-get update
sudo apt-get install -y ttf-mscorefonts-installer
sudo fc-cache -f

Fedora / RHEL / CentOS (via RPM Fusion or manual SPEC):

# Fedora (requires RPM Fusion free repository to be enabled)
sudo dnf install -y curl cabextract xorg-x11-font-utils fontconfig
sudo rpm -i https://downloads.sourceforge.net/project/mscorefonts2/rpms/msttcore-fonts-installer-2.6-1.noarch.rpm
sudo fc-cache -f

openSUSE:

sudo zypper install -y fetchmsttfonts
sudo fc-cache -f

Arch Linux:

# Available from the AUR
yay -S ttf-ms-fonts
sudo fc-cache -f

After installing, restart R (or call tfl_rescan_fonts() in a running session) so ksTFL picks up the new fonts.

Rocker Docker images

Rocker images are Debian-based, so ttf-mscorefonts-installer can be added directly. Include the following in your Dockerfile:

FROM rocker/r-ver:4.4

# Accept the Microsoft EULA non-interactively and install core fonts
RUN echo "ttf-mscorefonts-installer msttcorefonts/accepted-mscorefonts-eula select true" \
      | debconf-set-selections \
    && apt-get update \
    && apt-get install -y --no-install-recommends ttf-mscorefonts-installer fontconfig \
    && fc-cache -f \
    && apt-get clean \
    && rm -rf /var/lib/apt/lists/*

Tip: The debconf-set-selections line automatically accepts the Microsoft EULA, which is required for non-interactive installs (CI/CD pipelines, Docker builds).

Custom font directories

Point the ksTFL.font_dirs option to directories containing proprietary or additional fonts. These are scanned alongside system directories:

options(ksTFL.font_dirs = c("/opt/company-fonts", "~/my-fonts"))
tfl_rescan_fonts()

Font management functions:

Function	Purpose
`tfl_font_status()`	Print current font resolution report
`tfl_rescan_fonts()`	Re-scan all font directories and print updated report

Full Pipeline Example

library(ksTFL)

# 1. Create and customize spec
spec <- create_table(mtcars[1:10, ]) |>
  add_title("Motor Trend Car Road Tests") |>
  add_subtitle("Performance Metrics") |>
  add_footnote("Source: 1974 Motor Trend US magazine.") |>
  define_cols(c(mpg, cyl, hp), label = c("MPG", "Cylinders", "Horsepower"))

# 2. Assemble report
report <- create_report(spec)

# 3. Save + render to DOCX
write_doc(report, name = "demo", outDir = "output", metaPath = tempdir())

Dependencies

R Packages

Package	Purpose
cli	Formatted error messages and user feedback
checkmate	Type-safe argument validation
jsonlite	JSON serialization/deserialization
tidyselect	Column selection semantics
rlang	Quasiquotation and evaluation
digest	Hash generation for style deduplication
purrr	Functional programming utilities
htmltools	Interactive spec preview (print method)
rstudioapi	RStudio viewer integration
Rcpp	R/C++ interface for rendering engine

License

GPL-3. See https://www.gnu.org/licenses/gpl-3.0.html.

Authors

Igor Aleschenkov Vladimir Larchenko ksTFL Team (C)

Architecture Note

ksTFL integrates metadata generation and document rendering in a single R package:

The R layer generates validated JSON specifications describing document structure, content, column formats, and styles
The C++ rendering engine (built-in, C++20, used by write_doc() / replay_report()) consumes these specifications and produces styled DOCX documents with deterministic pagination

This architecture enables:

Metadata generation (R) and rendering (C++) are independently optimizable
Specifications are reusable, serializable, and version-controllable
The complete pipeline runs within a single R session — no external tools required
End-to-end auditability from data to final document

ksTFL: Clinical Tables, Figures, and Listings Framework

Overview

Key Design Principles

Installation

Binary Installation (Recommended)

From R-universe (All platforms)

Windows

Linux — Ubuntu / Debian

Linux — Fedora / RHEL

macOS

From a downloaded file

Source Installation

Prerequisites

From GitHub

From a local clone

Dependencies

Fonts note

Quick Start Example

API Reference

Document Initialization

Content Functions

Column Configuration

Conditional Row Styling

Style Definitions

Document Configuration

Document Templates

Report Assembly & Rendering

Package Options

Atomic Styles (Built-in Style Atoms)

Inline Text Markup

Workflow Architecture

Key Features

1. Tidyselect Integration

2. Style Consolidation

3. Schema Validation

4. Data Environment

5. Vectorized Parameters

6. Built-in DOCX Renderer

7. Font Management

Why proprietary fonts are not bundled

Installing Microsoft core fonts on Linux

Rocker Docker images

Custom font directories

Full Pipeline Example

Dependencies

R Packages

License

Authors

Architecture Note
